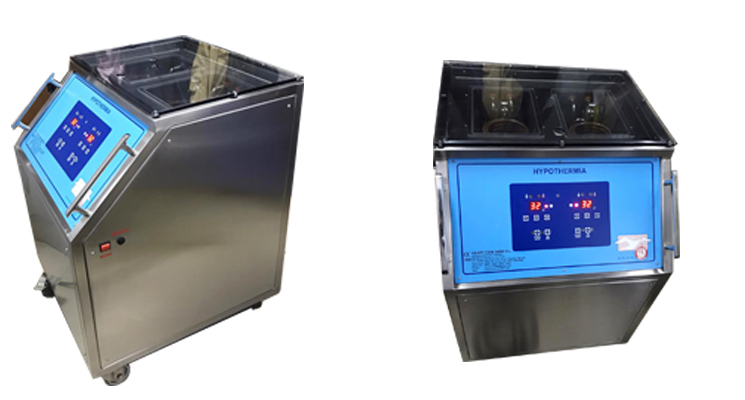

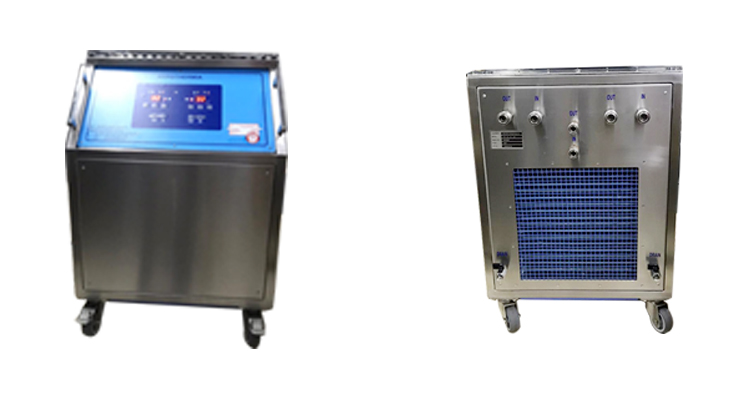

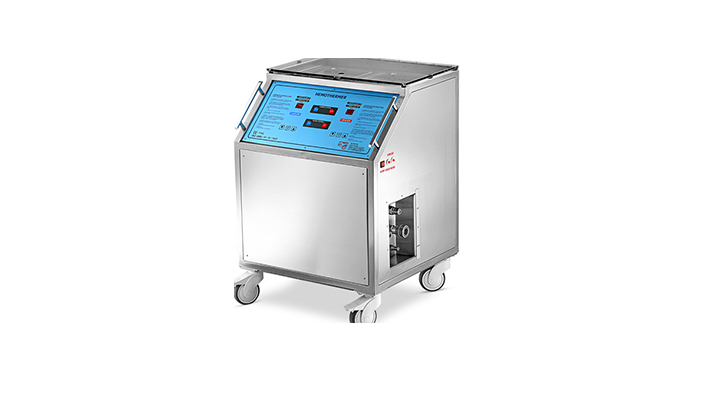

Hypothermia Machine

Hypothermia Machine


TECHNICAL SPECIFICTION FOR HYPO THERMIA MACHINE

TEMPERATURE CONTRAL SYSTEM Fluid Temperature Control Range 2° C to 42° C
Temperature Control Accuracy +/ -1° C
½ HP Heavy Duty Compressor for Cooling
Fluid Cooling Range 32° C to 2° C
Fluid Heating Range 32° C to 42° C
Power Consumption for Heater 2000 watts
Hansen Fitting ½” for inlet & Outlet ¼” for Water Drain
SAFETY
High Limit Thermostat 42° C
Low Limit Thermostat 2° C
ELECTRICAL REQUIREMENTS
220 v – 230 v AC 50Hz 1 to 20 AMPS
Power Consumption 2000 Watts
Circuit Breaker 10 AMPS Loan Conductor
PHYSICAL DIMENSION
L x W X H – m650mm x 600 mm x 700 mm
Cabinet Weight 120 kg
FEATURERS

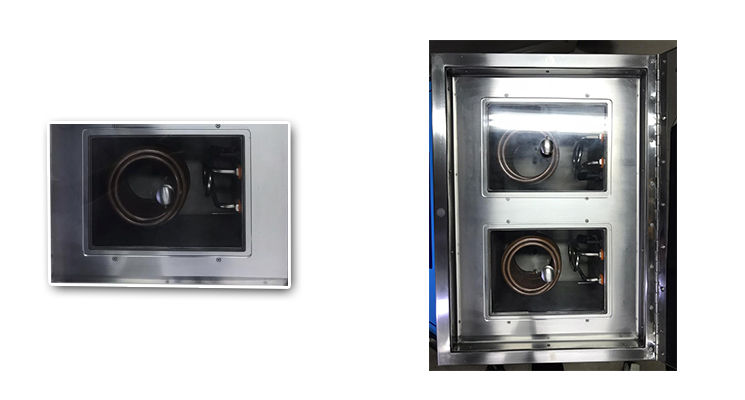

Dual Reservoir Cooler / Heater (Fiber Tank)
Designed Fast Accurate Temperature Control During Open Heart Surgery
Precise Blood Temperature Control Without Ice
Automatic Temperature Controller with East to Read Temperature Monitor
Maintains Temperature Between 2°C to 42° C
Built in High & Low Limit Thermostat & Circuit Breakers Enhance Safety
Independent Cooling & Heating
Independent Own Controller & Display
Separate Port for Heat exchange & blankets
Water level indicator = if it is low alarm will give sound
If Heater temperature exceeds the limit , the heater will cut off automatically
It this continuously happen, please call the service engineer
TECHNICAL DATA
CIRCULATING SYSTEM
Reservoir capacity cool 8 liters, hot 8 liters
Reservoir Fluid, Distilled (or) Filtered Water (do not use ordinary water the machine will spoil very quickly
Flow Rate 13 LPM with flow thro Hansen Fittings
Max Pressure 25 PSI
Rust Proof Fiber glass Reservoir Construction
OPERATING INSTRUCTIONS
Before using please clean Heater/cooler tank
Both cooler and Heater tank should be filled with distilled water up to water level indicator otherwise water level indicator will give buzzer sound with red light and as well as cooler & Heater switch will not work
Switch ON the main switch is on the Right side of the Machine
Overload button is next to the Main Switch on the right side for the Machine
Set the desire temperature both cooler and heater side (min 2 degree C to Max 42° C)
CIRCULATION
When you switch on the cold water circulation hot water circulation switch will not work,. The same way if you switch on the hot water circulation cold water circulation switch will not work ½” tubing connector hose inlet and outlet which goes to the oxygenator ¼” tubing connector is provided for drainage of heater and cooler (suitable connector will be given separately)
3/8” tubing connectors inlet and outlet are provided for blanket connecting, which is compatible for both indigenous and imported
WARNING
The required voltage for the machine to operate 220v, if the voltage drop is there then we suggest to use 5 kva stabilizer
If there is short circuit in Cooler and Heater inside the machine, automatically the overload BUTTON will be TRIP-OFF then switch ON again after a minute. If it is repeated again an again please contact immediately to our service engineer.
Use only distilled water
As a part of the operation system switch ON both heater side and Cooler side and keep it ready for the circulation.
To switch OFF the Machine all the switches should be off finally the main switch should be OFF (Don’t directly switch OFF the main switch) and clean cooler tank and heater tank after the surgery is over.
SUGGESTION
After warranty period, we suggest you to have an AMC to maintain the equipment in a good condition.
CE and ISO Certified.
